ECO Pet 5+
A 5 chamber pet cremator featuring various chamber sizes, designed to offer a cost-effective cremation solution for medium to crematoriums.
Product Overview

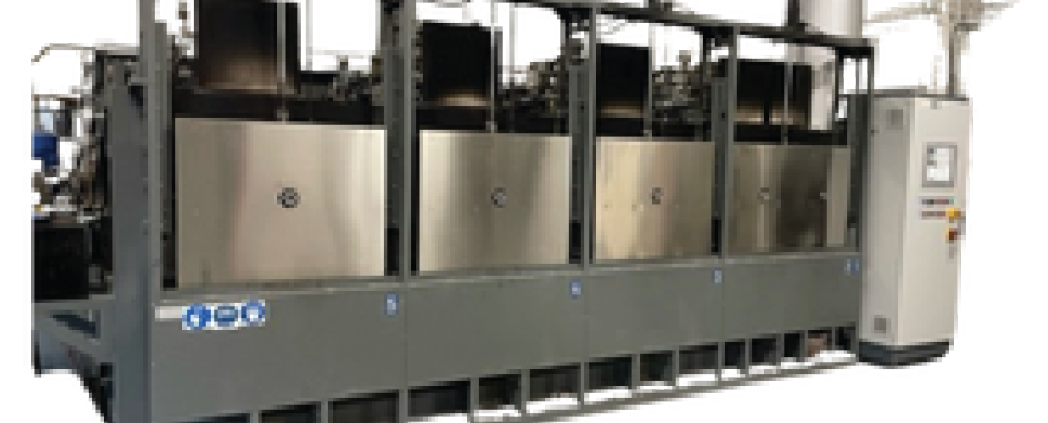

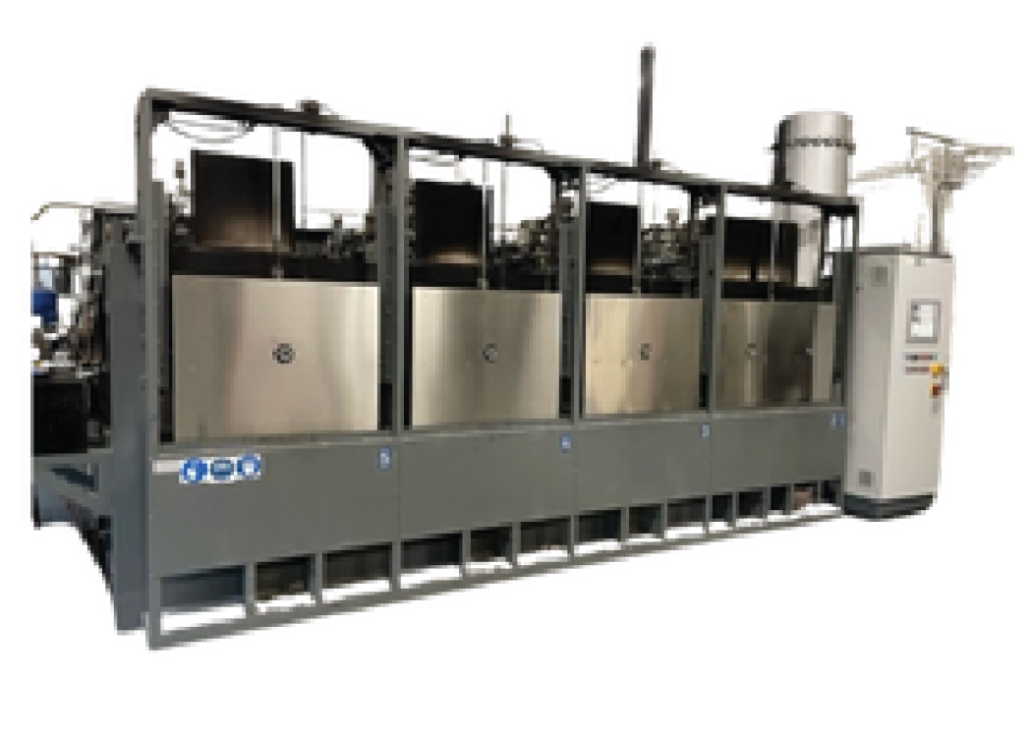

The ECO Pet 5 + by ECT is a state-of-the-art individual 5 chambered pet cremator designed with various sized chamber to provide an economical cremation solution for medium to -sized pet crematoriums.
This powerful unit is engineered for efficiency, quality, and environmental responsibility, making it an ideal choice for operators seeking to deliver respectful and reliable pet cremation services.
Design Features
- Nominal Throughput: 113 kg
- Supplied with oxygen control for optimum fuel usage.
- Designed for maximum productivity.
- Fully automated PLC controls for simple, efficient operation.
- Different size chambers for optimal operation for a wide range of animals.
- Compliant with EU Animal Byproduct Regulation.
- Hot hearth combustion chamber with automatic temperature control and complete with combustion air fans.
- Two-second residence time in its secondary combustion chamber.
- Flue gas abatement for stricter environmental regulations.
- Remote access to allow off site operation.
Cost-Effective at Scale
Five chambers in various sizes deliver a flexible, cost-effective solution for medium to large sized pet crematoriums.
Economical Operation
Optimised fuel usage and low maintenance reduce operating costs without compromising performance.
Versatile Capacity
Varied chamber sizes accommodate a wide range of pet sizes in a single installation.
Environmentally Approved
Two-second residence time at 850°C; optional flue gas abatement available for stricter regulations.
Power & Burners
- Electrical: 220/400 V, single/three phase, 50/60 Hz, 16 A
- Cremator Burner(s): 5
- Secondary Burner(s): 1
- Nominal burn rate: 113 kg/hr
- Flue gas abatement for stricter environmental regulations
- Remote access to allow off site operation
Additional Features
- Flue gas abatement for stricter environmental regulations.
- Remote access to allow off site operation.
Footprint
- Length: 2840 mm
- Width: 7130 mm
- Height: 3425 mm
- Weight: 27 tonnes
- Chimney: 9 m
